Type A (VB) Stub End

Type A (VB) Stub End – Stainless Steel – 14VB

Price range: $31.90 through $990.95

Type A (VB) Stub End in premium 316L stainless steel offers superior sanitary performance for tube connections. Designed for easy installation, these stub ends reduce welding time and facilitate precise flange alignment across multiple tube sizes from 1/2″ to 12″.

Product Specifications
SKU: 14VB Categories: , ,
The Type A (VB) Stub End represents an innovative solution for sanitary tube connections in industrial processing environments. Manufactured from high-grade 316L stainless steel, these precision components are engineered to meet rigorous sanitary standards across food, beverage, pharmaceutical, and biotechnology industries. Unlike traditional weld neck flanges, these stub ends dramatically streamline installation by allowing slip-on flanges to be rotated, ensuring perfect bolt hole alignment and reducing overall connection time. Available in tube sizes ranging from 1/2″ to 12″, each stub end is meticulously crafted to provide consistent performance, corrosion resistance, and reliable sealing. The product’s design minimizes potential contamination points, making it ideal for applications requiring stringent hygienic standards. Compatible with standard 1/2″ thick tube flanges, these stub ends offer engineers and maintenance professionals a versatile, efficient solution for complex piping and processing systems.

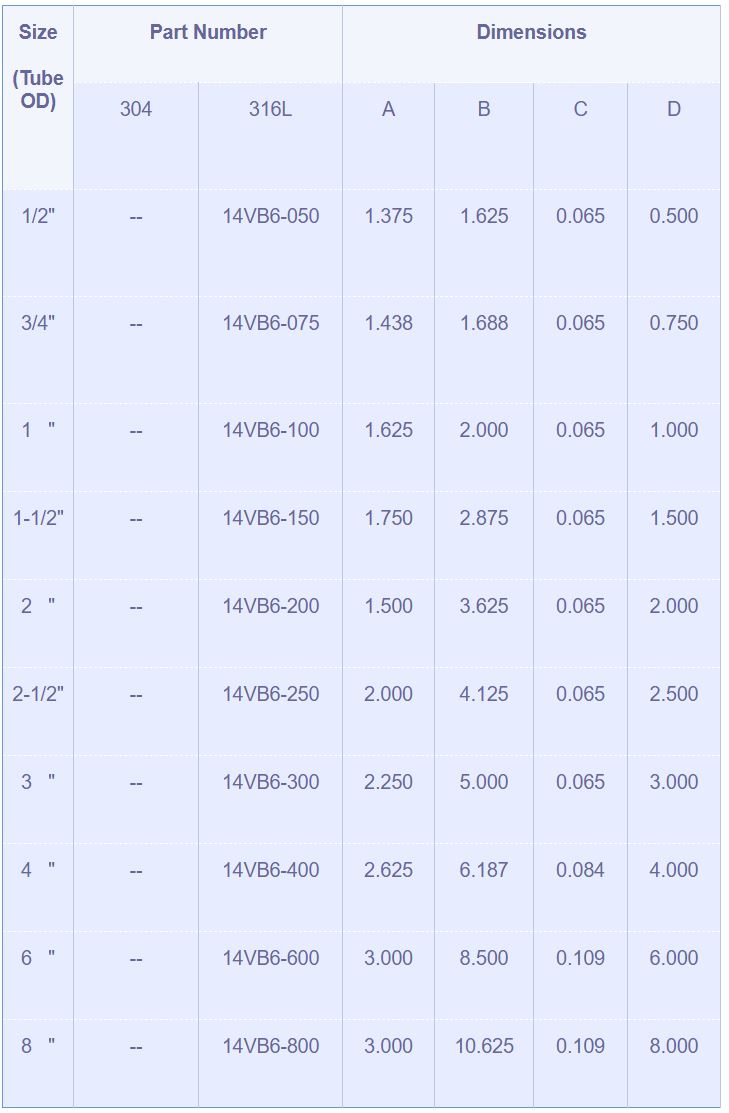

Size
(Tube OD)		 Part Number Dimensions
304 316L A B C D
1/2″ — 14VB6-050 1.375 1.625 0.065 0.500
3/4″ — 14VB6-075 1.438 1.688 0.065 0.750
1″ — 14VB6-100 1.625 2.000 0.065 1.000
1-1/2″ — 14VB6-150 1.750 2.875 0.065 1.500
2″ — 14VB6-200 1.500 3.625 0.065 2.000
2-1/2″ — 14VB6-250 2.000 4.125 0.065 2.500
3″ — 14VB6-300 2.250 5.000 0.065 3.000
4″ — 14VB6-400 2.625 6.187 0.084 4.000
6″ — 14VB6-600 3.000 8.500 0.109 6.000
8″ — 14VB6-800 3.000 10.625 0.109 8.000
Size (Tube OD)

1/2", 3/4", 1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8", 10", 12"
